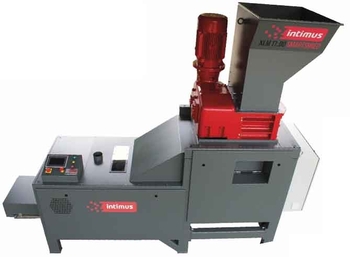

The XLM 17.00 shredder is equipped with a ferrous magnetic separator that allows for the destruction of complete ring binders,
they are extracted by the magnet separator during operation, protect the
secondary shredder. It also increases the lifetime of the cutting block. All sheet steel covers are equipped with quick
release fasteners for quick service. The Intimus XLM
17.00 can Sheds Paper, Boxes, Binders, Floppy Disks, Tape Media, Etc.,
All functions are controlled automatically by the integrated
Siemens S7 1200 series PLC.
Featured with Smartshed touchscreen controls with session logging, maintenance reminders, and increased cutting efficiency
Two shredding steps: From primary shredder – 1 3/16” strip
cut – particles fall onto a conveyor belt and are transported
directly to the cutting shafts of the security shredder
Automatic feed of material to pre-shredder via large feed
conveyor and hopper
PLC-control with touchscreen
Precision cutting cylinders made from special hardened steel
allow for high throughput volumes with minimal wear and
low power consumption
Especially suited storage and compacting equipment is
recommended for further processing of shredded particles.
Simple storage solutions (containers), as well as specially
configured compacting equipment for volume reduction can
be supplied upon request.
XLM shredders are equipped with an integrated magnetic
separator. Obsolete ring binders, patient files and other records with
metal reinforcements for hanging file folder cabinets no longer need to
be sorted out for the removal of integrated metal components.
parts are collected in a mobile receptacle, from which they can be
