Formax Cut-True 29A Automatic Electric Guillotine Cutter

Formax Cut-True 29A Automatic Electric Guillotine Cutter
Formax Cut-True 29A Automatic Electric Guillotine Cutter

Formax Cut-True 29A Automatic Electric Guillotine Cutter

On GSA Contract

Price: $32,418.82

Our Price: $11,781.80

Shipping:
FREE

Brand: Formax

SKU: Cut-True-29A


Product Videos

Formax Cut-True 29A Automatic Electric Guillotine Cutter


PRODUCT DESCRIPTION:

Formax Cut-True 29A Advanced New-Gen Cutter designed for precision cutting with customization up to the paper stacks 20.5” wide. Featured with synthetic Touchscreen control panel allows programs to constitute up to 100 inputs with auto adjustment in back gauge. Implemented with the safe design of shutting down the operation while finding any interruption on the light plane by using an effective infrared light beam.

Added with the special anti-friction surface with optional wide side tables, making it easier for operators to maneuver large paper stock. Accuracy on cutting is up to 0.1mm on paper stacks up to 80mm.

Featured with a false clamp to minimize the risk of marking sensitive paper stock or perfect bound books. Included with the provision of clamp removal in order to decrease the minimum cut length and easily stored within the machine.

User-friendly operations with the touchscreen control panel to program and job selection. Options avail for setting the back gauge using the touchscreen and electronically -controlled two-hand operation engages the hardened steel blade for crisp, accurate cuts every time.

Explicitly designed for transforming large sheets into brochures, invitations with crisp, accurate cuts and welcome addition to print shops for convenient processing on their regular jobs.


PRODUCT FEATURES

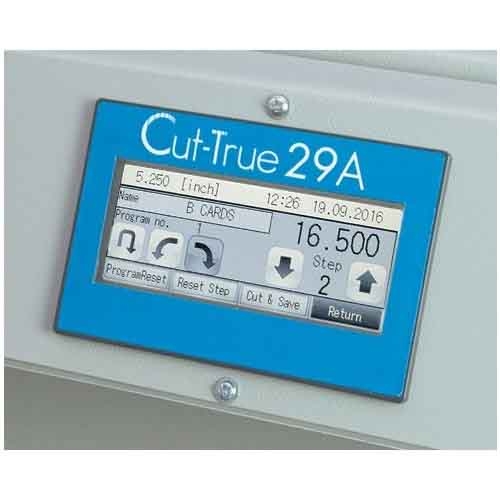

  • Touchscreen Control Panel: User-friendly interface designed with LCD screen for your convenient operations
  • Programmable: Designed to program up to 100 jobs/cuts

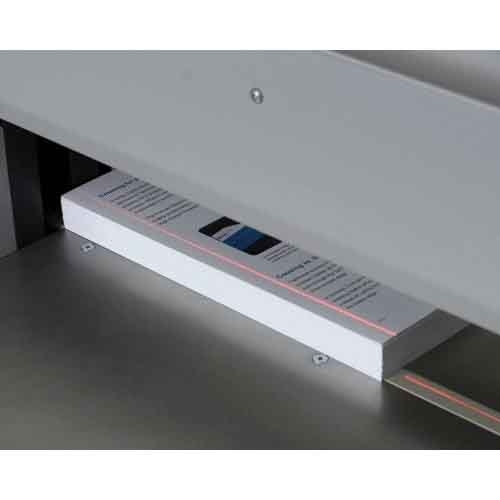

  • LED Cutting Line: Ensures accurate cuts every time
  • Cutting Accuracy: 0.1 mm on paper stacks up to 80 mm
  • Hardened Steel Guillotine Blade: Ensures superior durability and precise cuts
  • Electronically-Controlled Two-Hand Operation: Keeps the operator's hands away from blades
  • Automatically-Adjusting Back Gauge: For operational convenience

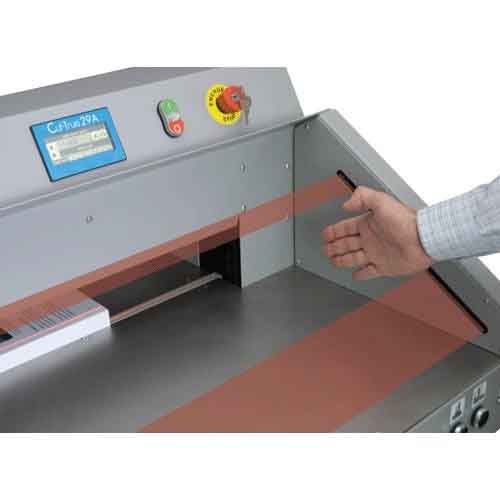

  • Range of Safety Features: Infrared light beam safety curtain, lock with key, blade lock, external blade depth adjustment, automatic blade return from any position, easy-to-use blade change safety tool and a wooden paper push for safe alignment
  • Cut Capacity: Cuts stacks of paper up to 3.15" high and 20.5" wide
  • Anti-Friction Surface: With optional wide side tables
  • False Clamp: Minimizes risk of marking sensitive paper stock
  • Precise For: Transforming large sheets into brochures, invitations, and more with crisp, accurate cuts


PRODUCT SPECIFICATION



Cutting ActionDual Button electric
Maximum Cutting Width 20.5” (520mm)
Maximum Paper Stack Height3.15” (80mm)
Programmable JobsUp to 100 programs with up to 100 steps each
Touchscreen FeaturesProgram jobs, alternate between inches/mm, paper eject function, programming via cutting, business card cutting mode
Length Behind Blade20.5” (520mm)
Length in Front of Blade18.25” (464mm)
Minimum Cut w/False Clamp1.6” (40mm)
Minimum Cut w/o False Clamp .98” (25mm)
Clamp StyleAutomatic, electronically adjustable
Dimensions 49.2” H x 36.75” W x 53.2” D
Weight683 lbs
Manufactured inUSA
ManufacturerFormax



                                                                     Brochure

Specifications for Formax Cut-True 29A Automatic Electric Guillotine Cutter
Cutting Width:
Cutting Height:
Narrow Cut:
Cutting Length Behind Blade:
Cutting Length Front of Blade:
Clamp:
Manual or Electric:
Stand:
