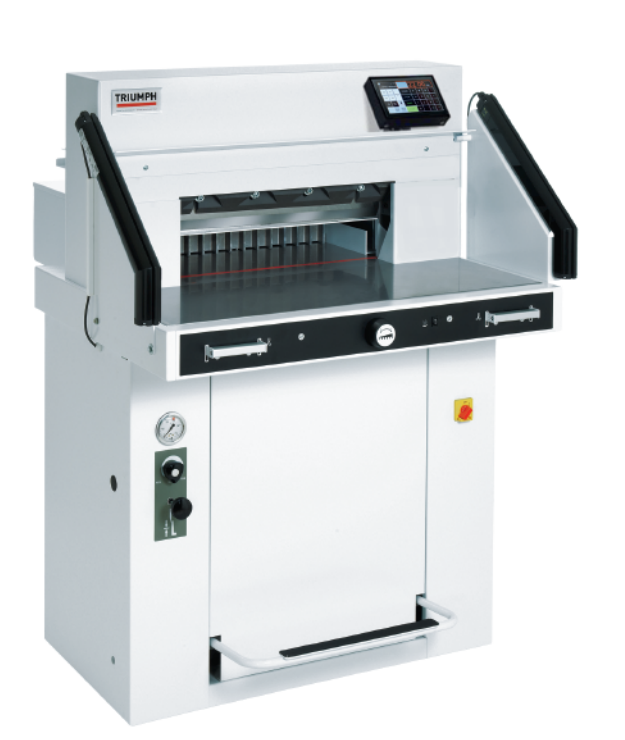

TRIUMPH™ VR CUT 5560 Programmable Paper Cutter
TRIUMPH™ VR CUT 5560 Programmable Paper Cutter
Price:
$21,739.00
Request Quote
Brand: TRIUMPH
SKU: CU0493V
TRIUMPH™ VR CUT 5560 Programmable Paper Cutter PRODUCT DESCRIPTION:
MBM presents the large-office programmable commercial stack paper cutter. The TRIUMPH VR Cut 5560 is equipped with a hydraulic blade and clamp drive, a power back gauge, a digital touchpad, and IR safety lights on the front of the table. Stores 99 programmable jobs with up to 15 different cuts each. This 2 horsepower cutter will cut up to 3 3/4 inches of paper. It is equipped with Automatic SET function for reference measurement and ejects function for pushing out paper. High quality, German steel blade. Solid steel blade carrier and adjustable blade guides. The Triumph 5260 is both UL and C UL approved.
CLICK THE LINK BELOW FOR COMPARE MODELS OF VRCUT
VR CUT COMPARE MODELS
PRODUCT FEATURES:

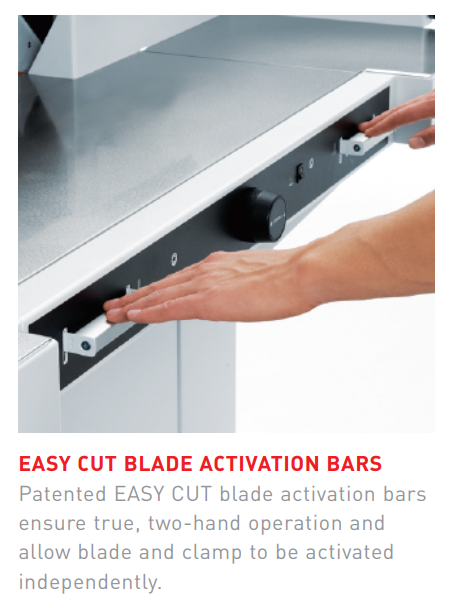

Electronic blade activation bars for two-hand operation IR light beam safety curtain on the front table Safety cover on rear table Main switch and safety lock with key 24-volt controls (low voltage) Patented
IDEAL safety drive
Automatic blade and clamp return from every angle Edge of blade covered with blade changing device Blade depth adjustment from outside of the machine Blade and cutting stick can be changed without
removing covers

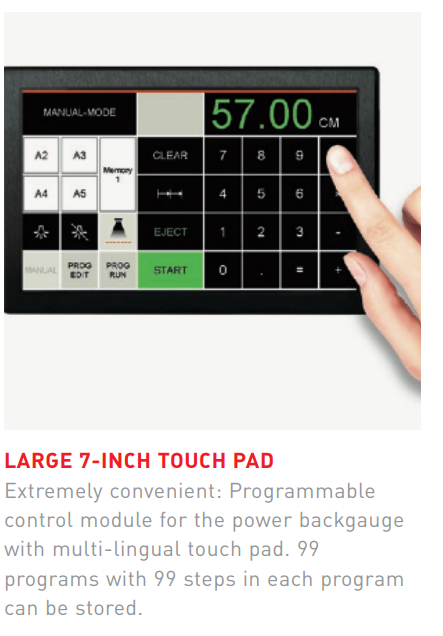

Hydraulic blade and clamp drive Foot pedal for pre-clamping Electric back gauge drive with touchpad for easy programming Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch Stores 99
programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step)
Pre-programmed for standard paper
sizes

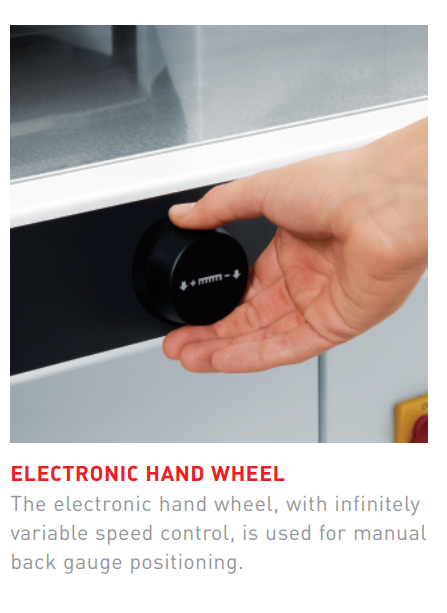

Memory key for repeat cuts Automatic SET function for reference measurement and EJECT function for pushing out paper Self-diagnostic system with error indication on the display Electronic hand wheel with variable speed control for manual back gauge
setting

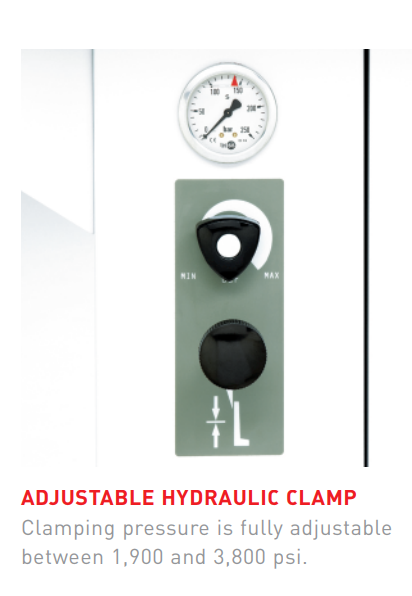

Clamp pressure is fully adjustable between 1,900 and 3,800 psi False clamp plate Bright, LED optical cutting line Adjustable, spindle guided back gauge with narrow
separations and plastic gliders

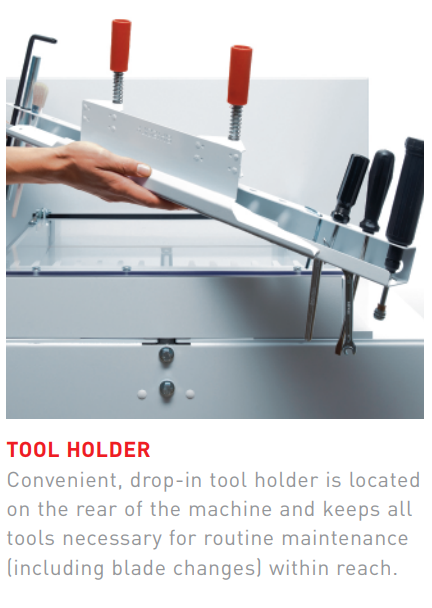

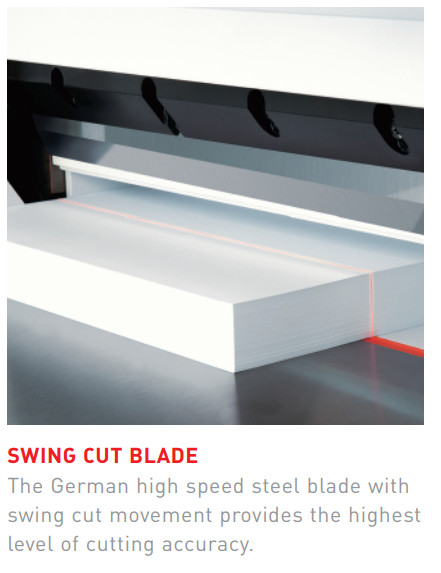

Dual side guides on front and rear tables German HSS blade Precision swing cut blade movement Aluminum blade carrier and clamp bar Adjustable blade guides All-metal construction Mounted on casters Includes easy-access tool holder and paper blocking tool Optional side tables increase work surface PRODUCT SPECIFICATIONS:
CUTTING WIDTH (in)
21 5/8
CUTTING HEIGHT (in)
3 3/4
NARROW CUT (in)
1 1/4
LENGTH BEHIND BLADE (in)
22 7/16
ELECTRICAL REQUIREMENTS
115 V, 60 Hz
MOTOR OUTPUT (hp)
2
DIMENSIONS (D x W x H in)
55 x 42 x 54
SHIPPING WEIGHT (lbs)
970
Specifications for TRIUMPH™ VR CUT 5560 Programmable Paper Cutter
Cutting Width:
Cutting Height:
18
Narrow Cut:
10
Cutting Length Behind Blade:
1/32" x 3/16"
Cutting Length Front of Blade:
10
Clamp:
N/A
Manual or Electric:
Yes
Stand:
Yes
Measurement Readout:
Continuous
LED Optional Cutting Line:
No
Motor:
Yes
Power:
Yes
Ship Weight:
No
Dimensions:
Yes
:
123.95
:
18.5"L x 19.5"W x 36.5"H
:
Yes
