TRIUMPH™ VR CUT 5260 Programmable Paper Cutter
TRIUMPH™ VR CUT 5260 Programmable Paper Cutter
Price:
$16,989.00
Request Quote
Brand: TRIUMPH
SKU: CU0489V
VIDEO VIDEO PRODUCT DESCRIPTION:

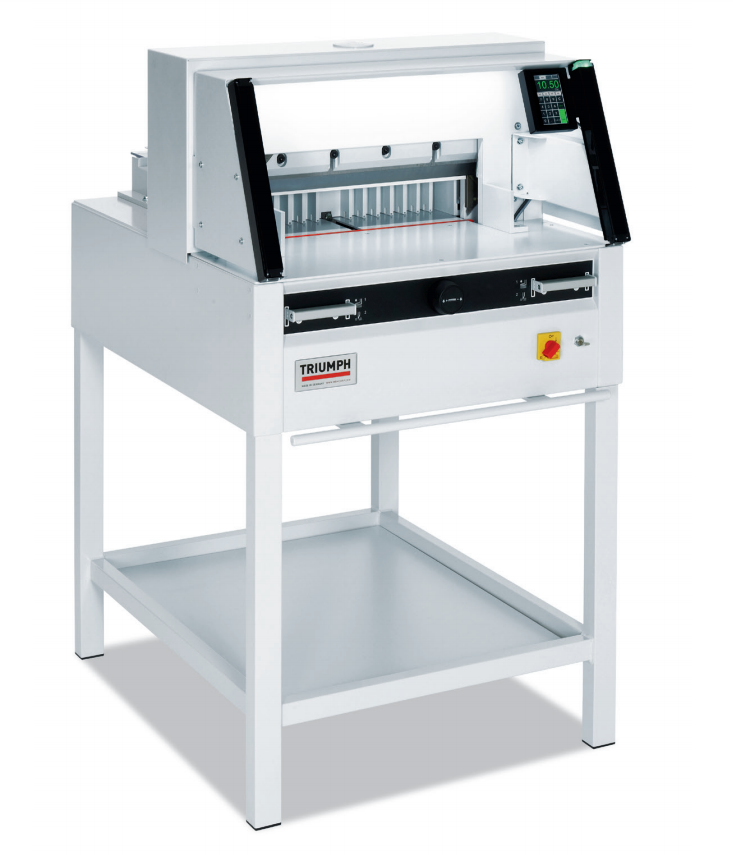

MBM presents the large-office programmable commercial stack paper cutter. The VR Cut Ready Triumph 5260 is a programmable cutter with
automatic clamp, power back gauge, digital touchpad, and IR safety light beams
on the front table. The Triumph VR Cut 5260 Stores 99 programmable jobs with up to 15 different cut each. This 2
horsepower cutter will cut up to 3 3/4 inches of paper. It Is
equipped with Automatic SET function for
reference measurement and EJECT function for pushing out paper. High
quality, German steel blade. Solid steel blade carrier and adjustable blade
guides. The Triumph 5260 is both UL and C UL approved.
CLICK THE LINK BELOW FOR COMPARE MODELS OF VRCUT
VR CUT COMPARE MODELS
PRODUCT FEATURES :

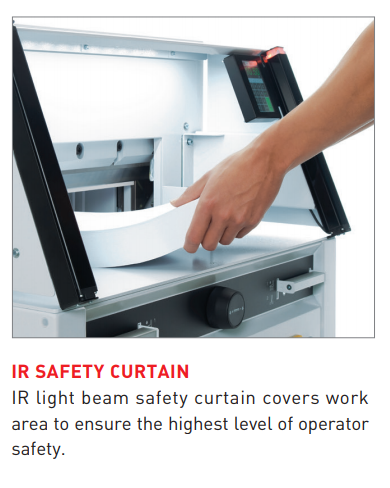

Electronic blade activation bars for two-hand operation IR light beam safety curtain on the front table Safety cover on rear table Main switch and safety lock with key 24-volt controls (low voltage) Patented IDEAL safety drive Automatic blade and clamp return from every angle Disc brake for instant blade stop Edge of blade covered with blade changing device Blade depth adjustment from outside of the machine Blade and cutting stick can be changed without removing covers 37-inch working height Electric blade and clamp drive Electric back gauge drive with touchpad for easy programming Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step) Pre-programmed for standard paper sizes Memory key for repeat cuts Automatic SET function for reference measurement and EJECT function for pushing out paper Self-diagnostic system with error indication on display Electronic hand wheel with variable speed control for manual back gauge setting Bright, LED optical cutting line 3-step, LED front table illumination Adjustable, spindle-guided back gauge with narrow separations and plastic gliders Dual side guides on front and rear tables High quality, German steel blade Solid steel blade carrier and adjustable blade guides All-metal construction Includes stand with storage shelf, easy-access tool holder, and paper blocking tool Optional side tables increase the work surface.
PRODUCT SPECIFICATIONS:
CUTTING WIDTH (in)
20 3/8
CUTTING HEIGHT (in)
3
NARROW CUT (in)
1 3/8
LENGTH BEHIND BLADE (in)
20 3/8
ELECTRICAL REQUIREMENTS
115 V, 60 Hz
MOTOR OUTPUT (hp)
2
DIMENSIONS (D x W x H in)
44 x 33 7/8 x 51
SHIPPING WEIGHT (lbs)
657
Specifications for TRIUMPH™ VR CUT 5260 Programmable Paper Cutter
Cutting Width:
20 3/8"
Cutting Height:
3"
Narrow Cut:
1 3/8"
Cutting Length Behind Blade:
20 3/8"
Cutting Length Front of Blade:
10
Clamp:
N/A
Manual or Electric:
Yes
Stand:
Yes
Measurement Readout:
Continuous
LED Optional Cutting Line:
Yes
Motor:
Yes
Power:
Yes
Ship Weight:
657 lbs
Dimensions:
51" H x 33 7/8" W x 44"D
:
123.95
:
18.5"L x 19.5"W x 36.5"H
:
Yes
