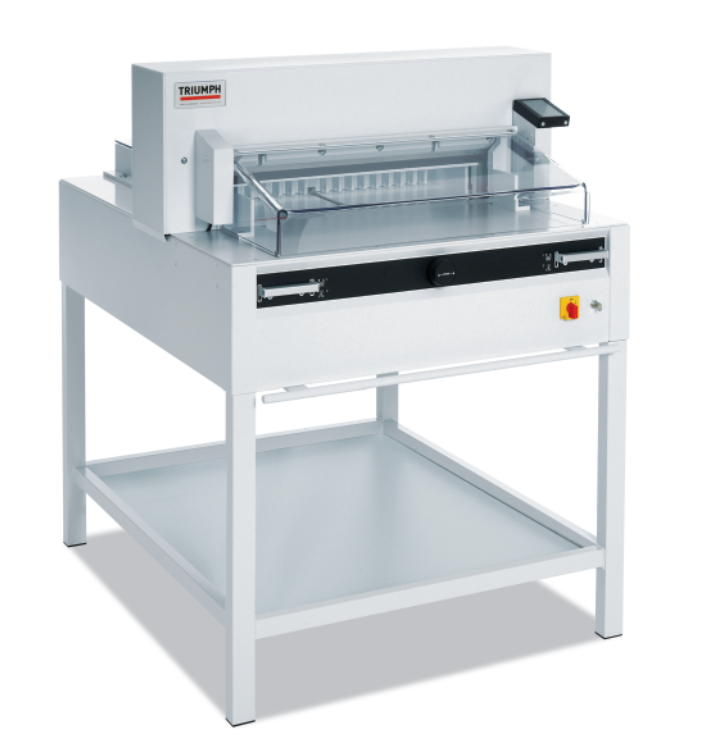

TRIUMPH™ 6655 Programmable Paper Cutter

TRIUMPH™ 6655 Programmable Paper Cutter
TRIUMPH™ 6655 Programmable Paper Cutter 6655 1

6655 2

6655 3

6655 Cutter

6655 4

TRIUMPH™ 6655 Programmable Paper Cutter

Price: $17,159.00


Brand: TRIUMPH

SKU: CU0491


TRIUMPH™ 6655 Programmable Paper Cutter

PRODUCT DESCRIPTION:

MBM presents the large-office programmable commercial stack paper cutter. The Triumph 6655 is a programmable cutter with an automatic clamp, power back gauge, digital touchpad, and IR safety light beams on the front table. The Triumph 6655 Stores 99 programmable jobs with up to 15 different cuts each. This 2-horsepower cutter will cut up to 3 inches of paper. It has an Automatic SET function for reference measurement and an ejects function for pushing out paper. High-quality, German steel blade. Solid steel blade carrier and adjustable blade guides. The Triumph 6655 is both UL and C UL approved.

CLICK HERE FOR BROCHURE

PRODUCT FEATURES:

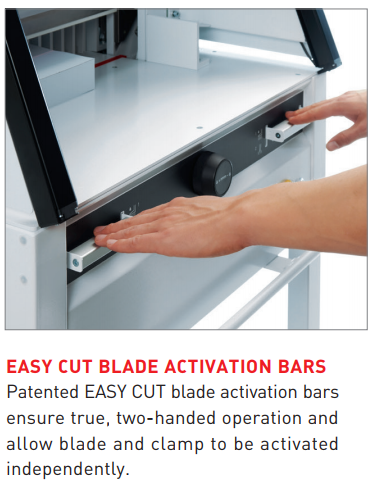

  • Electronic blade activation bars for two-hand operation
  • Transparent, electronically controlled front safety guard
  • Safety cover on rear table
  • Main switch and safety lock with key
  • 24-volt controls (low voltage)
  • Patented IDEAL safety drive
  • Automatic blade and clamp return from every angle
  • Disc brake for instant blade stop

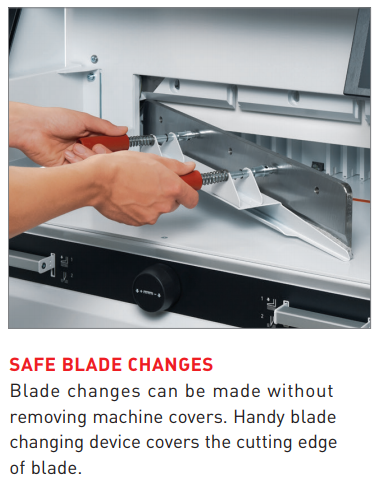

  • Edge of blade covered with blade changing device
  • Blade depth adjustment from outside of the machine
  • Blade and cutting stick can be changed without removing covers
  • 37-inch working height
  • Electric blade and clamp drive

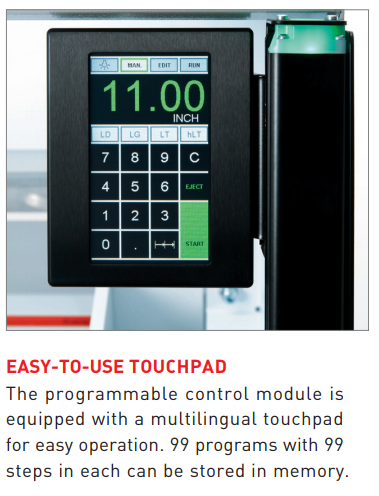

  • Electric back gauge drive with touchpad for easy programming
  • Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch
  • Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step)
  • Pre-programmed for standard paper sizes
  • Memory key for repeat cuts
  • Automatic SET function for reference measurement and EJECT function for pushing out paper
  • Self-diagnostic system with error indication on the display

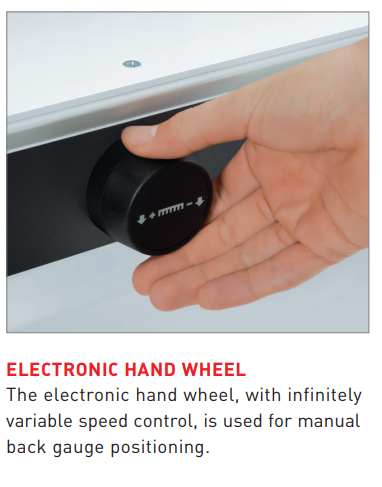

  • Electronic hand wheel with variable speed control for manual back gauge setting
  • Bright, LED optical cutting line
  • Adjustable, spindle-guided back gauge with narrow separations and plastic gliders
  • Dual side guides on front and rear tables
  • High quality, German steel blade
  • The solid steel blade carrier and adjustable blade guides
  • All-metal construction

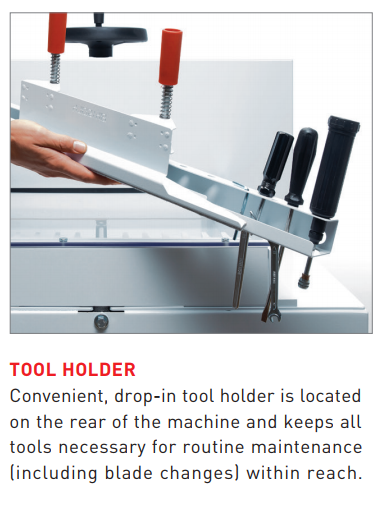

  • Includes stand with storage shelf, easy-access tool holder, and paper blocking tool
  • Optional side tables increase the work surface.



PRODUCT SPECIFICATIONS:

CUTTING WIDTH (in) 25 1/2
CUTTING HEIGHT (in) 3
NARROW CUT (in) 1
LENGTH BEHIND BLADE (in) 24
ELECTRICAL REQUIREMENTS 115 V, 60 Hz
MOTOR OUTPUT (hp) 2
DIMENSIONS (D x W x H in) 48 x 39 x 51
SHIPPING WEIGHT (lbs) 772

Specifications for TRIUMPH™ 6655 Programmable Paper Cutter
Cutting Width:
Cutting Height: 18
Narrow Cut: 10
Cutting Length Behind Blade: 1/32" x 3/16"
Cutting Length Front of Blade: 10
Clamp: N/A
Manual or Electric: Yes
Stand: Yes
Measurement Readout: Continuous
LED Optional Cutting Line: No
Motor: Yes
Power: Yes
Ship Weight: No
Dimensions: Yes
: 123.95
: 18.5"L x 19.5"W x 36.5"H
: Yes
