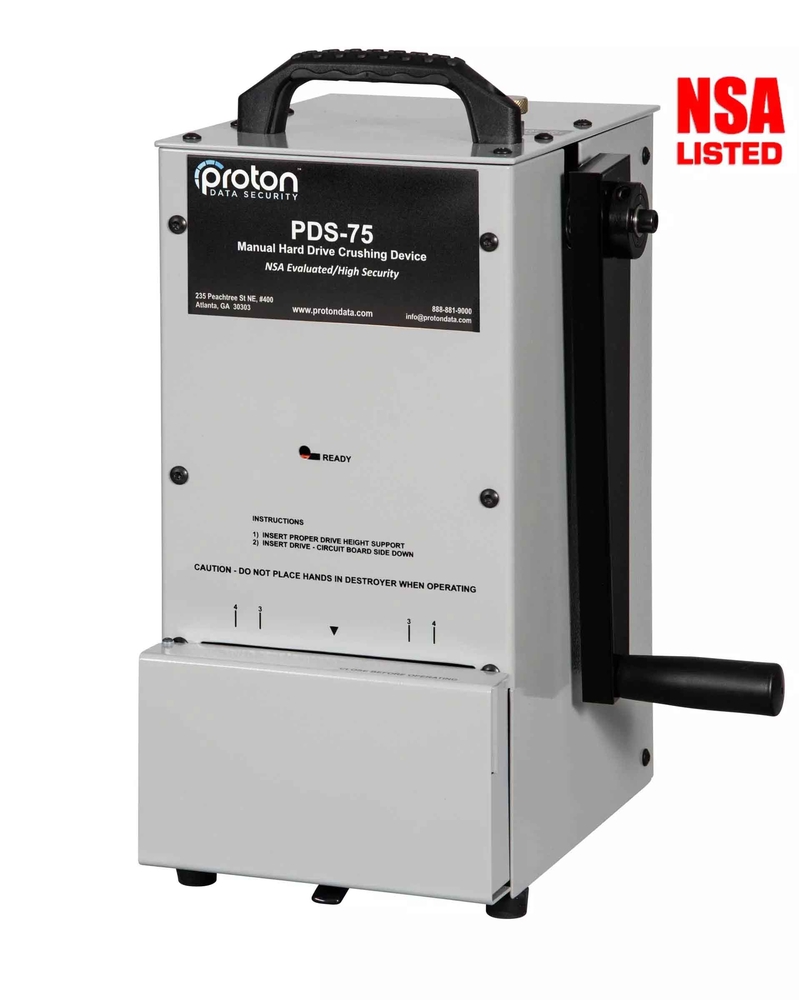

The Proton PDS-75 is a manual compact and portable hard drive destruction unit listed on the NSA/CSS Evaluated product list for 1 inch, .65 inch, 1.65 inch, and Laptop hard drive destruction. The PDS-100 is used by the NSA and DoD for destroying internal hard drives prior to disposal.
NOTE: For proper hard drive destruction, always us a hard drive degausser to remove data from the drive prior to using a drive destruction device. Degaussing guarantees data cannot be recovered from the small pieces of disk remaining after destruction because all stored data is erased. A degausser magnetically deletes stored data permanently from the storage device so when used in conjunction with a hard drive shredder, bender, or punch, the data is deleted and unrecoverable.

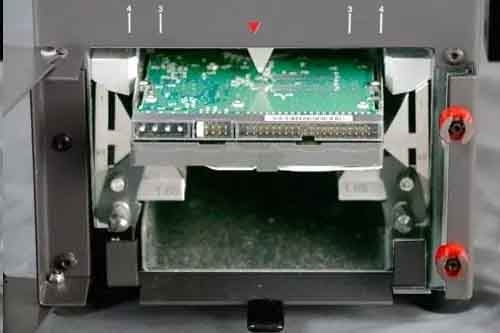

The PDS-75 is a manual hard drive bender that quickly destroys hard drives in less than 8 seconds. Insert the properly degaussed hard drive into the feed opening and turn the large handle to begin driving the blade into the drive body bending the housing and internal disk.
Destroys 450 drives per hour
With the optional heavy-duty pelican case, the PDS 75 can easily be transported to any location for remote drive destruction.
Handles all 3.5-inch Form Factor Drives including .65-inch, 1-inch and 1.65-inch high drives.
Handles 2.5-inch Laptop hard drives with Laptop Holder option.
Handles SSD (Not NSA evaluated for SSD) drives in 3.5 Form Factor and 2.5 Form Factor with the Laptop Holder option
9.25″ (23.5 cm) D x 7.25″ (18.4 cm) W x 16.5″ (41.9 cm) H
49 lbs (22 kg)
Occasional vacuuming of debris drawer and internal housing

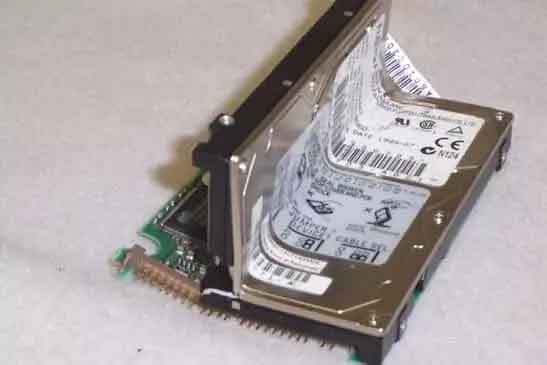

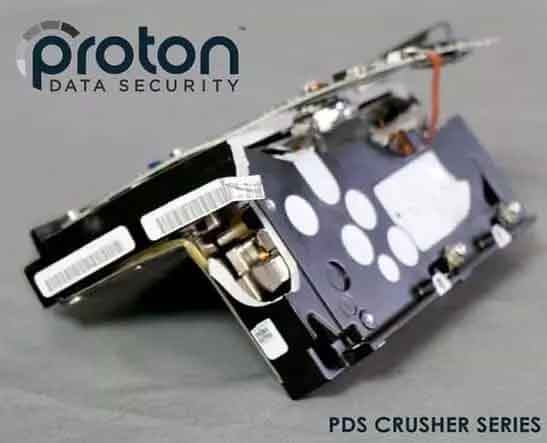

Bends/ breaks platters, damages heads, motor, and circuit boards
Hand Crank: 8 seconds or less (dependent on the operator)
Laptop; Rear Output Option; Rackmountable Slide-out Shelf Option (for 19” EIA racks, 19” to 28” deep)(Includes Slides); Remote Control Communication; Universal Screw Down Mounting Kit; Deployment Case with wheels
1 Year Parts & Labor. Lifetime Warranty on blade/bender.
Specifications for PDS-75 Proton Hard Drive Destruction
