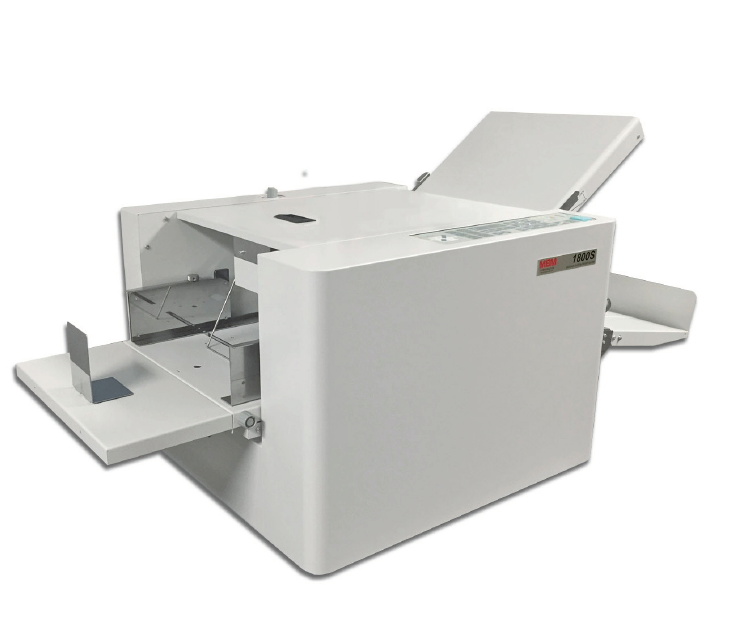

MBM 1800S Automatic Programmable Air Suction Tabletop Folder
MBM 1800S Automatic Programmable Air Suction Tabletop Folder
Price:
$9,699.00
Brand: MBM
SKU: F00623
MBM 1800S Automatic Programmable Air Suction Tabletop Folder PRODUCT DESCRIPTION:
MBM presents the automatic air feed folder designed for digitally printed folds. The 1800S is equipped with 30 custom folds and non-standard sizes of paper can be stored in memory.
PRODUCT FEATURES:
Detects double feeds on any white, printed,
transparent, black or mixture of colored sheets Removable folding roller for easy maintenance, the
adjustable folding roller pressure and a spring-loaded feed angle adjustment dial Top cover opens and closes in two
easy steps and the operator can reach the air adjustment knob without disruption when the top cover is open “Silver

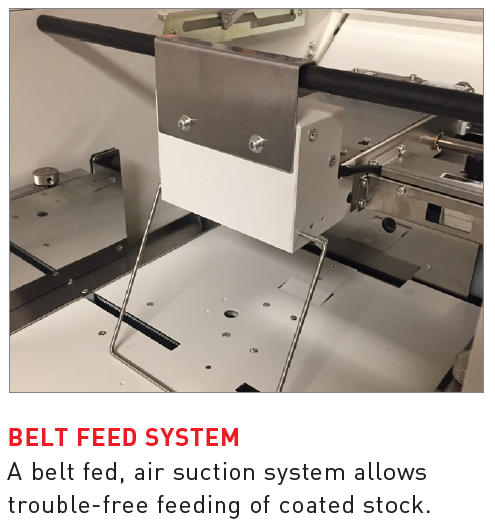

top” metal sheet for the smoother paper run and better electric conductivity Top feed, adjustable air suction feed system, suitable for

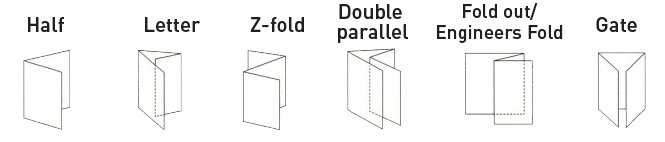

digitally printed and coated stocks Pre-programmed with 6 standard folds Stores 30 custom folds in memory One-touch memory

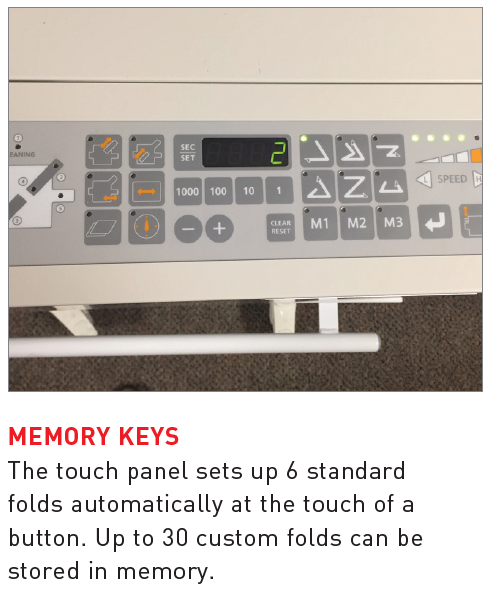

keys for custom folds Non-standard paper sizes can be stored in memory The control touch panel includes 4 digit counter with batch
and total functions Test button folds 2 sheets for inspection Extended exit tray for neat stacking of folded sheets Automatic feed
table ensures optimum feed pressure Automatic conveyor belt and self-setting exit rollers ensure smooth ejection of folded paper Single sheet feeding automatically maintained for different weights of paper Display alert and audible signal in case of incorrect
operation Skew and micro-adjustment dials All-metal construction Optional micro-perforator and scorer PRODUCT SPECIFICATIONS:
SPEED (sheets per hour) 18,000
PAPER SIZE (in)
4 1/2 x 8 1/4 to 13 x 19
PAPER WEIGHT (pounds)
16 to 80
SHEET CAPACITY
800
ELECTRICAL REQUIREMENTS
120 V, 60 Hz
DIMENSIONS (D x W x H in)
24 x 49 x 23 SHIPPING WEIGHT (lbs)
189
Specifications for MBM 1800S Automatic Programmable Air Suction Tabletop Folder
:
:
18
:
10
:
1/32" x 3/16"
:
10
:
N/A
:
Yes
:
Yes
:
Continuous
:
No
:
Yes
:
Yes
:
No
:
Yes
:
123.95
:
18.5"L x 19.5"W x 36.5"H
:
Yes
