Formax FD87HD Hard Drive Punch

Formax FD87HD Hard Drive Punch
Formax FD87HD Hard Drive Punch Cover



Formax FD87HD Hard Drive Punch

Price: $4,295.00

Our Price: $3,866.00


Brand: Formax


Product Videos

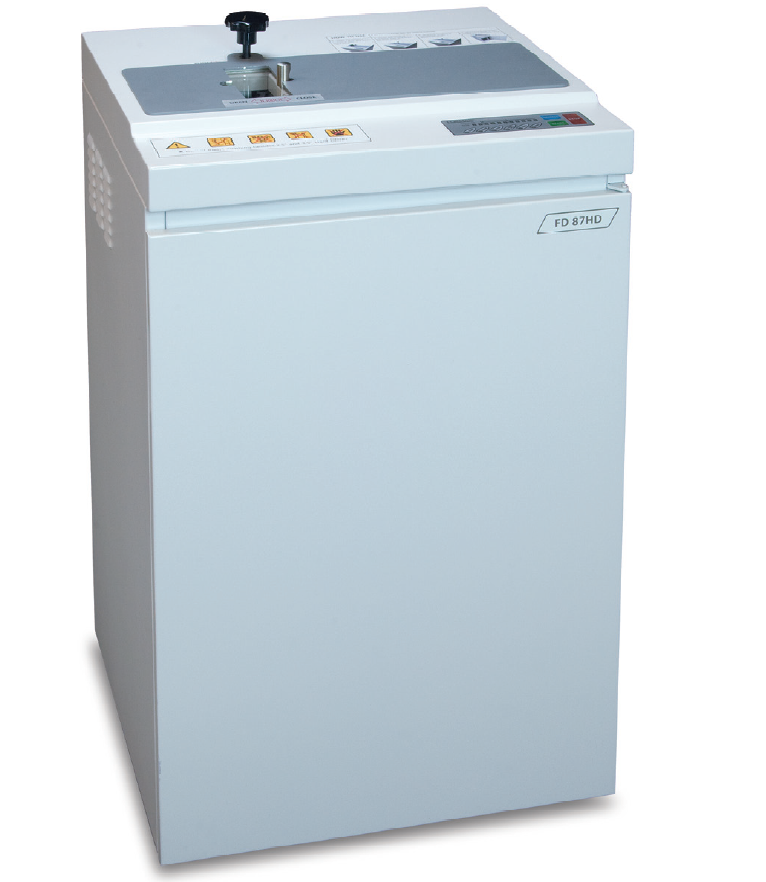

Formax FD87HD Hard Drive Punch

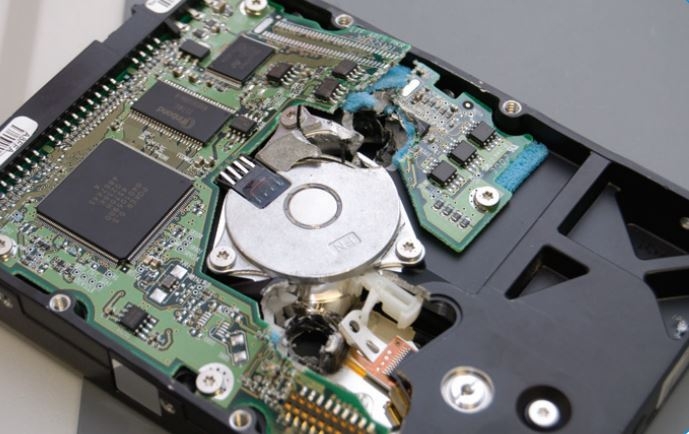

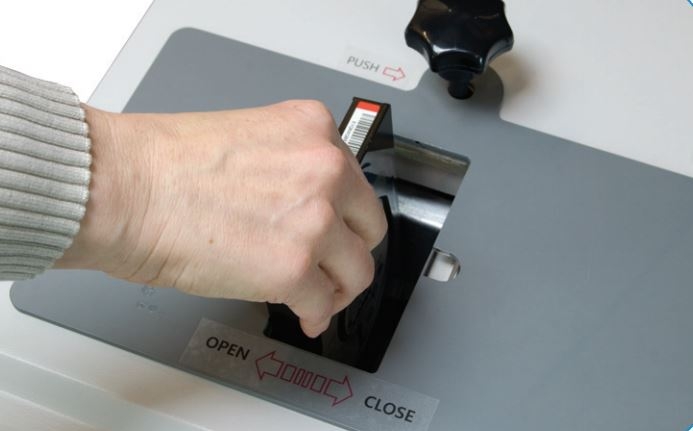

The Formax FD87HD Hard Drive Punch is capable of punching a hole through discarded hard drives by simply dropping in the hard drive, closing the safety shield, hitting the button.  Once activated, the hardened steel punching dies to puncture the hard drive in either a 2.5" or 3.5" size.  The drive penetrates the external housing on both sides and the internal drive rendering it unreadable.

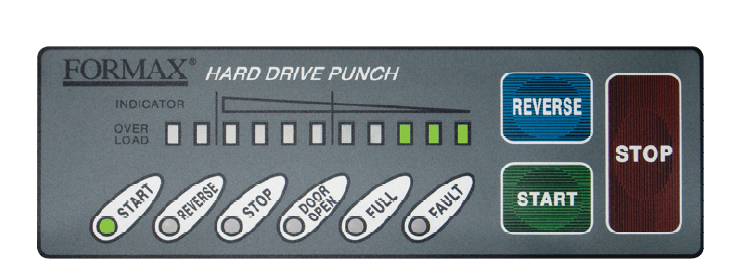

The FD87HD punching die is made of hardened, nickel-plated steel for durability. The LED control panel displays the status and offers jam protection with an auto-reverse and automatic stop.


  • Auto-stop after each cycle
  • Auto-reverse switches motor into reverse to clear jams

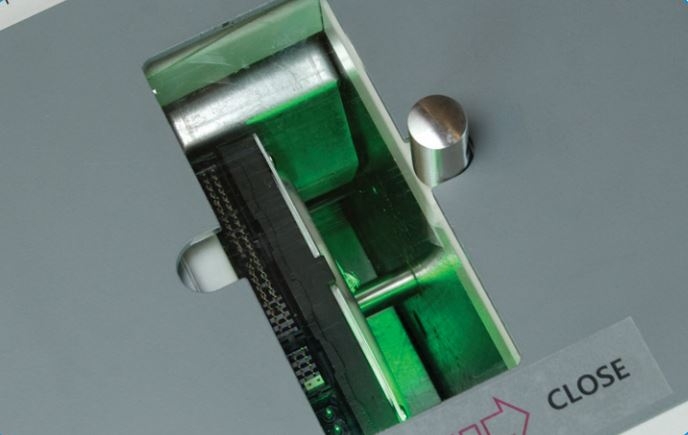

  • LED lights illuminate the punching chamber
  • Door safety sensor stops the motor automatically if the cabinet door is open
  • The auto sensor when the waste bin is full

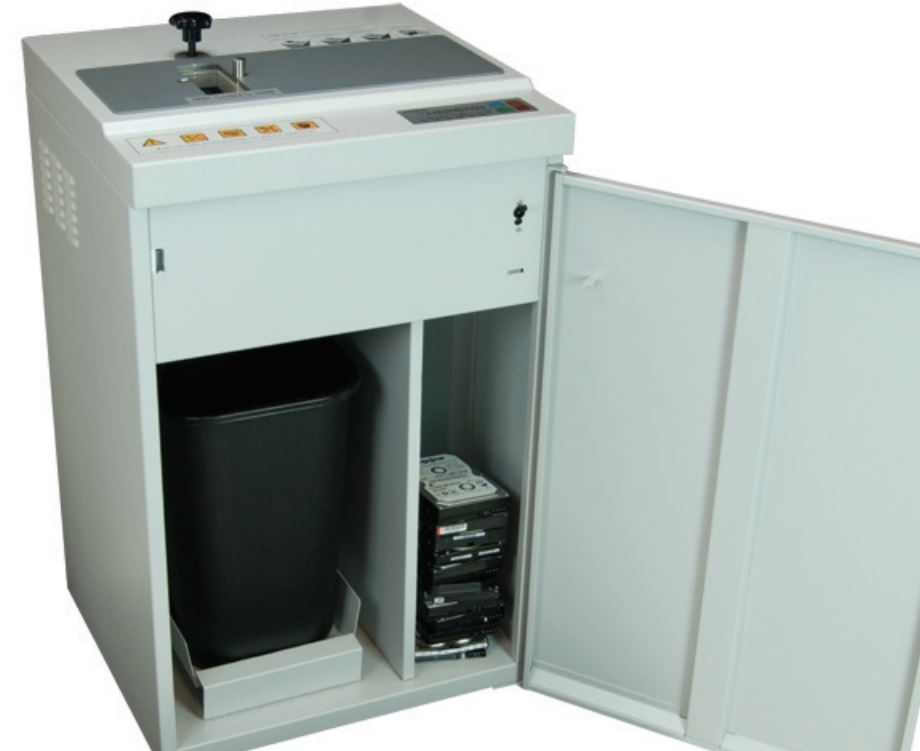

  • All-metal cabinet with casters and storage capability
  • Low noise design
  • The drive cycle is 14 seconds.


Punch Hole Size: .39” (10mm)
Hard Drive Size:2 1/2” or 3 1/2”
Feed Opening:4.65” (118mm)
Punching Cycle:14 seconds
Dimensions: 19.68” W x 18.5” D x 35” H (500 x 470 x 890mm)
Weight: 154 lbs. (70kg)
Security Level: H-3 (DIN 66399 standard)
Power Supply:110V, 50-60Hz


Specifications for Formax FD87HD Hard Drive Punch
: 110 Volt
: N/A
: N/A
: .39"
: 4.65
: N/A
: Yes
: yes
: N/A
: N/A
: N/A
: Yes
: No
: No
: 154 lbs
: 19.68" W x 18.5" D x 35" H
: N/A
