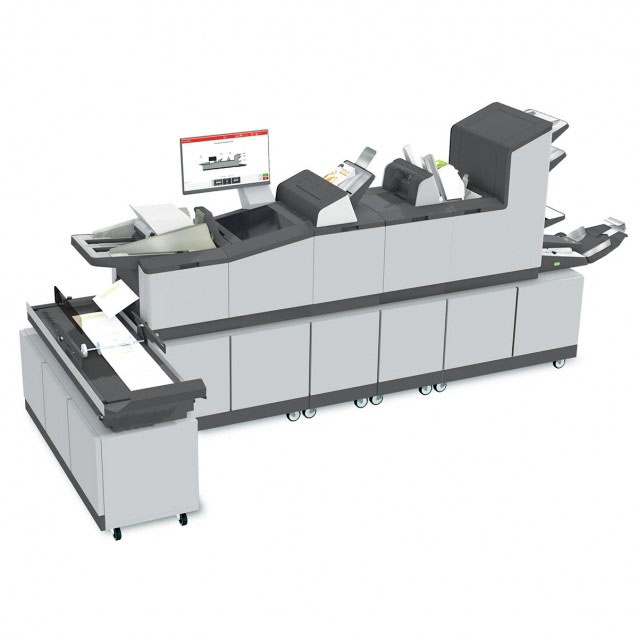

Formax FD7700 Series Modular Inserters

PRODUCT DESCRIPTION:

The Formax 7700 Series High-Volume Inserters meet the rigorous demands of nearly every mailing application from direct mail campaigns to mailings containing personal and private information.

The Formax 7700 Series is customizable from the inserter base up. Choose from one of five Tower Feeder-Folders, non-intelligent and intelligent High Capacity Insert Feeders, and in-line Feeder-Folders to meet the exact specifications for your mailings. The modular design enables up to 11 feeders to be combined based on the module configurations. In addition, the 7700 Series can be equipped to read OMR, BCR, 2D, and QR, with codes located anywhere on the page, even reading barcodes on the reverse side of the document!

Its robust folding system folds up to 8 sheets at a time, with the power to process up to 7,000 envelopes per hour, and up to 300,000 finished pieces per month. When processing flats, the 7700 Series can insert sets of up to 80 sheets and/or up to 10mm in thickness with the Thick Set upgrade license. The top-loading envelope hopper holds up to 800 #10 envelopes or 500 10” x 13” flats, in landscape orientation for higher processing speeds.

Designed for user friendly interaction, the 7700 Series features a 22” color touchscreen interface with intuitive graphics, a dynamic time-until-job-completion display, and unlimited programmable jobs, to easily create and run inserting applications. Standard features include a high-capacity 4-foot outfeed conveyor, which can be used in-line or at a 90° angle, an accumulation/divert deck with an integrated reset button, and custom cabinets with casters for sturdy, movable storage.

With modular, flexible, high capacity and intelligent design, the 7700 Series Inserters are ready to take on just about any mailing challenge.

CLICK HERE FOR BROCHURE

PRODUCT FEATURES:

• Modular design for up to 11 feed stations
• 22” wide screen color touchscreen
• Unlimited programmable jobs
• 5 tower configurations available
• Holds up to 2,000 sheets
• Intelligent & non-intelligent high-capacity
• inserter Inserts into landscape format
• Inserts sets of up to 80 sheets, up to 10mm
• Up to 7,000 envelopes per hour
• Folds up to 8 sheets at a time
• C, half, Z, double parallel and no fold
• Feeder holds up to 800 #10 or 6” x 9.5” envelopes
• Up to 500 10” x 13” landscape flats
• Double document detection
• Divert deck
• Display shows job time remaining
• Can refill feeders on the fly
• Full-width CIS scanner

OPTIONS:

• Thick set license
• Envelope sorter
• Custom cabinets
• Intelligent code reading software

Customizable Options available for the FD7700 Series:

FD 7700-Base13 * Inserter Base w/5K Speed License, 8K Accumulator Speed License, Conveyor, Cabinet

FD 7700-Base19 * Inserter Base w/5K Speed License, 14K Accumulator Speed License, Conveyor, Cabinet

FD 7700-Base15 * Inserter Base w/7K Speed License, 8K Accumulator Speed License, Conveyor, Cabinet

FD 7700-Base21 * Inserter Base w/7K Speed License, 14K Accumulator Speed License, Conveyor, Cabinet
