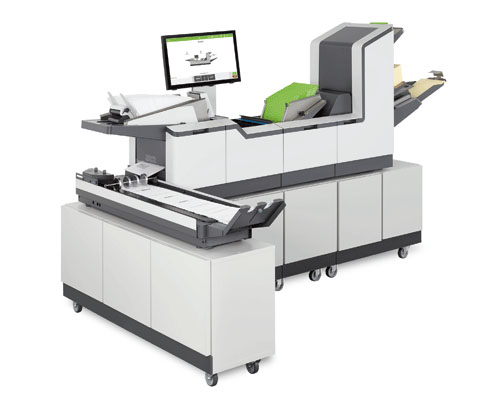

FORMAX FD7104 HIGH VOLUME MODULAR INSERTER SOLUTION

PRODUCT DESCRIPTION:

The Formax 7104 Series Inserters take flexibility and productivity to new heights. With 3 configurations, and an optional Productivity Package, this system can meet the challenge. The modular design offers up to 8 modules with up to 17 feed stations, with high-capacity feeders, and a standard capacity of up to 1,500 sheets. Each system is available with these standard feeder combinations: one 1,000-sheet feeder, one 500-sheet and one 1,000-sheet feeder, or three 500-sheet feeders. The top-loading envelope hopper holds up to 800 #10 envelopes.

A 22” color touchscreen interface guides operators through job programming and functions, and with unlimited programmable jobs, it’s even easier to run recurring or frequently processed applications. The 7104 Series has optional Intelligent Feeders with the ability to read 1 and 2-track OMR, 1D Barcodes and 2D Data Matrix, with codes located anywhere on the document, front or back. Mechanical Double Document Detectors ensure the correct documents get into each envelope, allowing for the automatic insertion of multiple-page documents, which eliminates the tedious task of manually collating and inserting.

The 7104 Series processes up to 4,500 envelopes per hour (up to 5,500/hour with the optional Productivity Package), producing up to 180,000 finished pieces per month. The robust folding system folds up to 8 sheets at a time. Feeders can also be linked with a Cascade Mode to maximize output by connecting feeders filled with the same document. When one feeder empties, the next automatically starts feeding. Optional Insert Feeders are top loading making it easy to reload on-the-fly, and provide the ability to insert a variety of media, including glossy booklets.

Standard features include a high-speed/capacity Accumulator and Divert Deck, ergonomically-designed Custom Cabinets on casters for convenient moveable storage, and a High-Capacity 4-foot Output Conveyor which can be used straight-on or at a 90 degree angle to the system.

CLICK HERE FOR BROCHURE

PRODUCT FEATURES:

• Modular design
• 22” color touchscreen
• Quick and easy setup
• Unlimited programmable jobs
• Inserts up to 6mm thick
• Up to 4,500 envelopes per hour
• Folds up to 8 sheets at a time
• C, half, Z, double parallel, no fold
• High-capacity envelope feeder
• Double document detection
• Divert tray
• Automatic document measurement
• Bottom-feeding for easy reloading
• Glossy paper capability
• 10-liter sealing solution reservoir
• Custom cabinets
• High-capacity output conveyor
• Daily mail mode

OPTIONS:

• Single or multi-code reading licenses
• 2-sided code reading
• Productivity package
• Insert feeders
• Intelligent feeders
• Feeder folders
• BRE feeder
• Envelope sorter/diverter
• Catch tray
• Sorter catch tray

Customizable Options available for the FD7104 Standard Series:

FD 7104-Standard 1F - Inserter w/Tower Feeder - Includes one 1,000 sheet feeder, 22" Color Touchscreen, Accumulator/Divert, Cabinets & Conveyor

FD 7104-Standard 2F - Inserter w/Tower Feeder - Includes one 500 and one 1,000 sheet feeders, 22" Color Touchscreen, Accumulator/Divert, Cabinets & Conveyor

FD7104 Standard 3 - Inserter w/Tower Feeder - Includes three 500 sheet feeders, 22" Color Touchscreen, Accumulator/Divert, Cabinets & Conveyor
