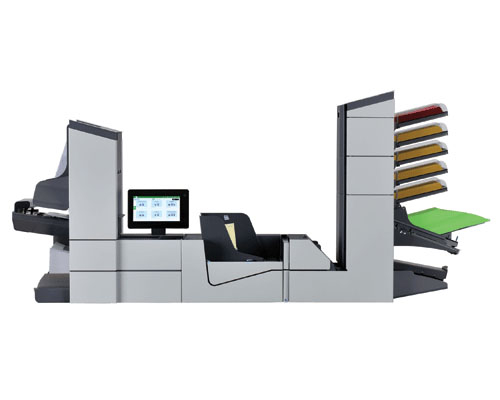

FORMAX FD6608 MODULAR INSERTER SOLUTION

PRODUCT DESCRIPTION:

The Formax modular 6608 Series is available with 2 to 7 stations for flexibility, and includes a variety of input configurations: a high-capacity document feeder for up to 725 sheets, 1 or 2 high-capacity production feeders, standard and special feeders, and short feed trays.

Formax FD6608 is a User-friendly features include the 10” color touchscreen control panel with graphics-based display and automatic paper and envelope presence sensors, a vertical output stacker which holds up to 500 filled envelopes, and a top-loading envelope hopper with a capacity of up to 500 envelopes which can be refilled on-the-fly. AutoSet allows operators to load envelopes and documents, then adjusts all settings automatically with the ability to store up to 50 programmed jobs for instant recall.
Its powerful folding capacity folds up to 10 sheets (half fold) or up to 8 sheets (tri-fold) at one time, plus Cascade Mode allows users to link feeders for continuous operation: when one feeder empties, another takes over.

Double document detectors located at each feeder and the insertion area ensure no double documents are fed into the system. The 6608 Series utilizes electromechanical detectors which can operate with any print density, paper color, thickness or paper dust. Documents requiring inspection can be delivered automatically to the divert station. The 6608 Series also offers energy savings with its auto standby mode, which goes into effect after 1 hour of idle time.

An optional CIS Scanner reads OMR, 1D and 2D Barcodes, QR codes and OCR printed anywhere on the page, which provides the ability to automatically insert multiple-page documents, eliminating the tedious task of manually collating and inserting. Additional options include high-capacity production feeders, 1 or 2 Thin Booklet Feeders, short feed trays for small inserts or BREs, side exit trays, and 402 Series Joggers.

CLICK HERE FOR BROCHURE

PRODUCT FEATURES:

• 10” intuitive color touchscreen
• Modular flexibility
• AutoSet™ one-touch setup
• Envelope & paper presence sensors
• High-capacity vertical output stacker
• Up to 50 programmable jobs
• Handles a variety of envelope sizes
• Large, top-loading envelope hopper
• C, Z, half, double parallel, no fold
• Daily mail mode
• Multi-feeding
• Cascade mode
• Folds up to 10 sheets at once
• Variable insert capability
• Eco mode
• Double document detection
• Divert station

OPTIONS:

• CIS scanner
• Thin booklet feeder
• Production feeders
• Side exit trays
• OMR, BCR, and OCR
• Short feed trays
• 402 Series Jogger

Customizable Options available for the FD6608-Standard and Special Series:

FD6608-Standard 2: Inserter - Two Station with 2 Standard Feeders

FD6608-Special 2: Inserter - Two Station with 1 Standard Feeder and 1 Special Feeder on Bottom

FD6608-Standard 3F: Inserter - Three Station with 1 High Capacity Standard Feeder and 2 Standard Feeders

FD6608-Special 3F: Inserter - Three Station with 2 Special Feeder and 1 High Capacity Document Feeder

FD6608-Standard 4: Inserter - Four Station with 4 Standard Feeders

FD6608-Special 4: Inserter - Four Station with 2 Standard Feeders and 2 Special Feeders

FD6608-Standard 5F: Inserter - Five Station with 4 Standard Feeders and 1 High Capacity Document Feeder

FD6608-Special 5F: Inserter - Five Station with 2 Special Feeders, 2 Standard Feeders and 1 High Capacity Document Feeder

FD6608-Standard 6: Inserter - Six Station with Standard Feeders

FD6608-Special 6: Inserter - Six-Station with 4 Standard Feeders and 2 Special Feeders
