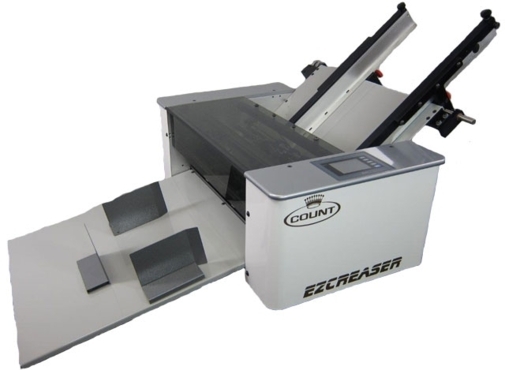

The EZCreaser Touch R1 Digital Creasing Machine offers proven dependable microprocessor controls.
The Count EZ Creaser Touch offers a user friendly attitude, flexibility, and speed. It's ideal for shops doing a multitude of jobs and who require automatic feeding. This affordable top feeding friction fed 18" wide unit is designed to do high-quality creasing, perforating, and feeding and optional micro-perfing and is easily operated by anyone in your shop.
Automated Distance Recognition allows for auto setups for Half, Tri-fold, Z-fold, Letter fold, Roll fold, Gate fold, Double Gate, and Double Parallel crease jobs.
Automatic Perfect Bind set-up.
Crease, Perforating and Feed modes
Accurate rotary actuated impact creasing
Linear Perf/Score capabilities, including micro and laser perf. Up to 4 at a time can be run.
Micro-Lateral adjustable feed rails
Batch and Total Counters
Double Sheet Detection
Ability to add in-line folder
Ability to add in-line transport for feeding the Countcoat GT UV Coater or other coaters.
Comes with both standard and wide crease dies.
Max Speed Compression Crease:
8.5" x 11" 4,000sph
Max Speed Rotary Perf /Score:
8.5" x 11" 12,000sph
115/60Hz/10A or 230/50Hz/10A (Specify on order)
Max Sheet Size:
18" x 2" (45cm x 45cm)
Min Sheet Size:
3" x 5" (8cm x 12cm)
Stock Paper Weights:
16lb. - 16 pointWeight: 200lbs.
Made in U.S.A.
Specifications for EZCreaser Touch R1 Digital Creasing Machine
Compression Crease 4500 8.5 x 11 sph / Rotary Perf
