MBM 508A Automatic Programmable Tabletop Paper Folder

MBM 508A Automatic Programmable Tabletop Paper Folder

MBM 508A Automatic Programmable Tabletop Paper Folder

Price: $6,399.00

Brand: MBM

SKU: FO0605

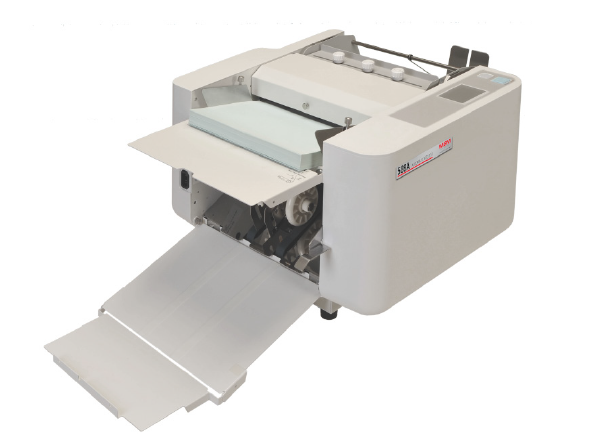

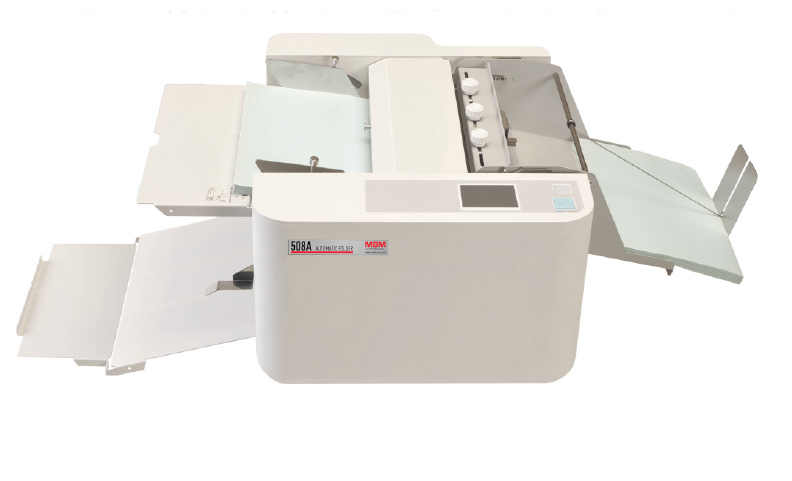

MBM 508A Automatic Programmable Tabletop Paper Folder


PRODUCT DESCRIPTION:

MBM presents the automatic friction fed folder. The 508A is equipped with storage for up to 24 custom folds and 18 pre-programmed standard folds.

PRODUCT FEATURES:

  • Paper feed/separator pressure adjustment
  • Automatic feed table elevation and delivery roller setting
  • Automatic paper size recognition
  • 24 custom jobs can be stored in memory

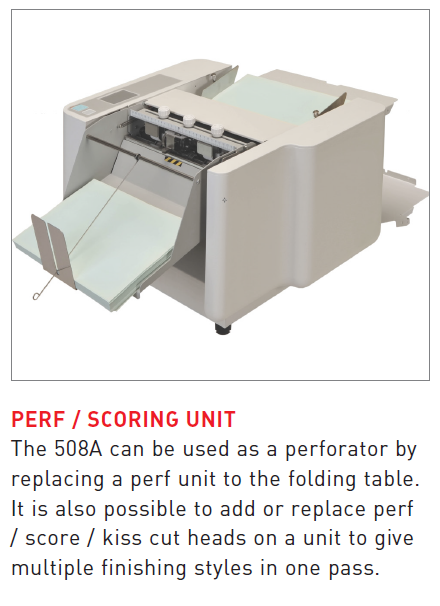

  • Perforating / scoring units available by option
  • Automatic 3 roller friction feed system

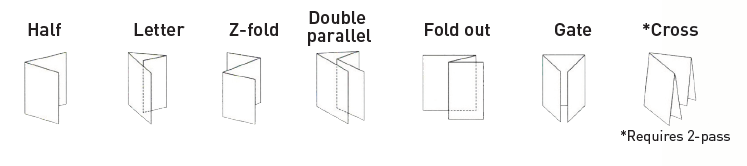

  • Pre-programmed with 18 standard folds
  • Stores 24 custom folds in memory
  • Automatic feed table elevation
  • Features paper feed pressure and separator pressure adjustment.

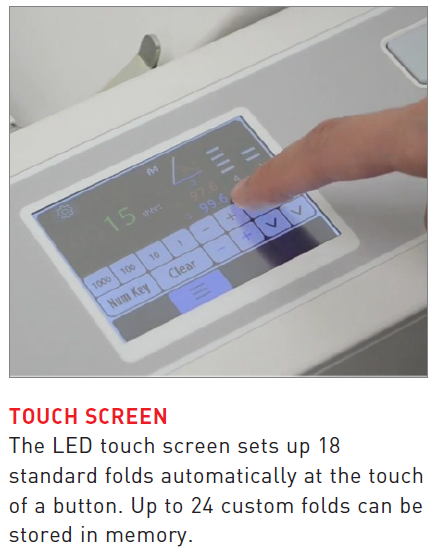

  • Color LED touch screen control panel includes 4 digit addition/subtraction digital counter
  • Test button folds 2 sheets for inspection
  • Automatically senses and displays paper size
  • Extended exit tray for neat stacking of folded sheets
  • Automatic conveyor ensures smooth ejection of folded paper
  • Single sheet feeding automatically maintained for different weights of paper
  • Auxiliary paper guide for cross folding
  • Load and unload paper from the same side
  • Display alert and audible signal in case of incorrect operation
  • Skew and micro-adjustment dials
  • Fully enclosed fold tables for quiet operation
  • Quick-release roller system for easy maintenance

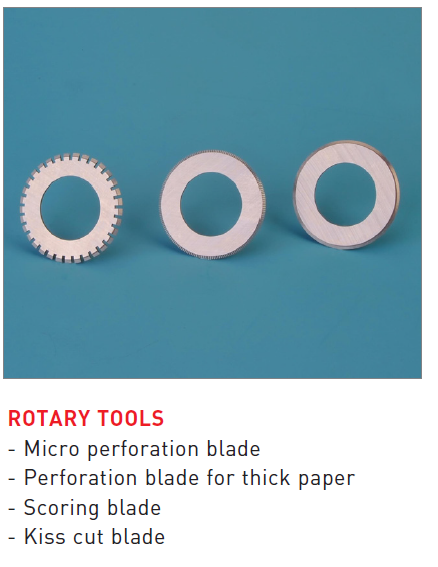

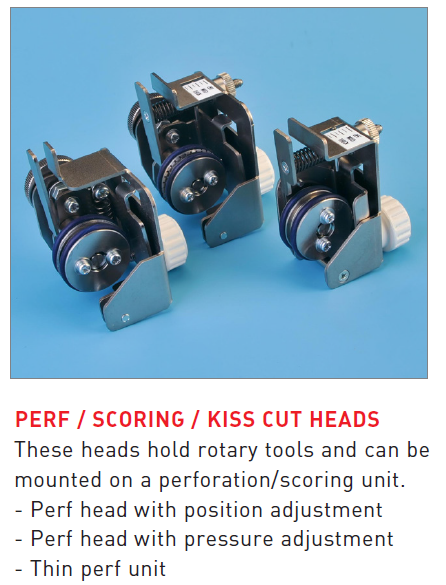

  • Optional scoring, microperforating, and slitting units



PRODUCT SPECIFICATIONS:

SPEED (sheets per hour) up to 14,000
PAPER SIZE (in) 3 1/2 x 5 to 11 x 17
PAPER WEIGHT (pounds) 12 to 80
SHEET CAPACITY 500
ELECTRICAL REQUIREMENTS 115 V, 60 Hz
DIMENSIONS (D x W x H in) 39 3/4 x 21 1/2 x 19 3/4
SHIPPING WEIGHT (lbs) 82

Brochure

Specifications for MBM 508A Automatic Programmable Tabletop Paper Folder
:
: 18
: 10
: 1/32" x 3/16"
: 10
: N/A
: Yes
: Yes
: Continuous
: No
: Yes
: Yes
: No
: Yes
: 123.95
: 18.5"L x 19.5"W x 36.5"H
: Yes
