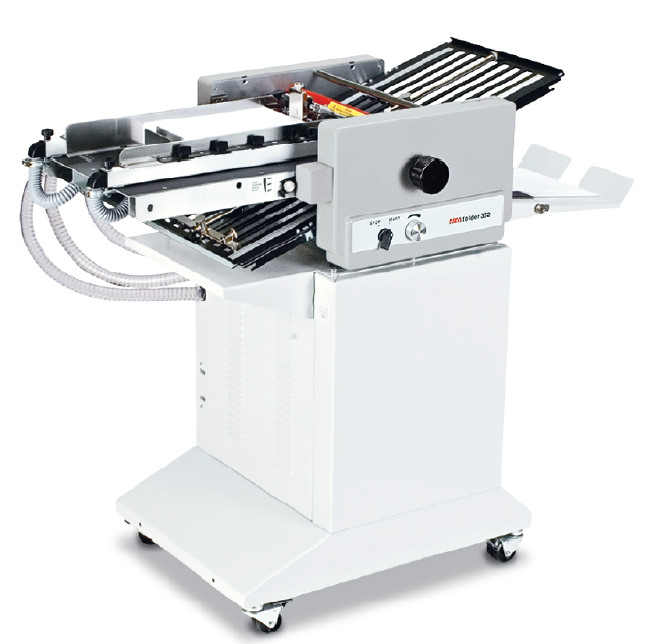

MBM 352S High-Volume High Speed Air Feed Folder

MBM 352S High-Volume High Speed Air Feed Folder
MBM 352S High-Volume High Speed Air Feed Folder

MBM 352S High-Volume High Speed Air Feed Folder

Price: $8,399.00

Our Price: $7,559.00

Brand: MBM

SKU: FO0625

ProductOverview:

MBM presents the large-volume air feed folder designed for glossy paper. The 352S features an air suction feed system and adjusts in seconds for standard and custom folds.

ProductFeatures:

  • Air suction feed system, suitable for coated (glossy) stocks
  • Adjusts in seconds for standard and custom folds
  • Variable speed control
  • Powered exit conveyor

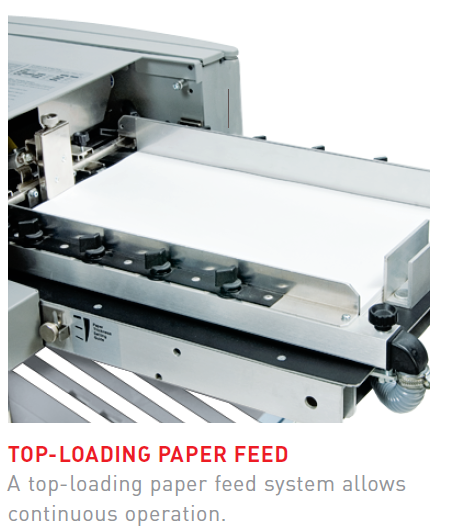

  • Bottom-feed, top-loading design for continuous reloading and dependable sheet separation
  • Polyurethane foam rollers eliminate the need for fold roller pressure settings

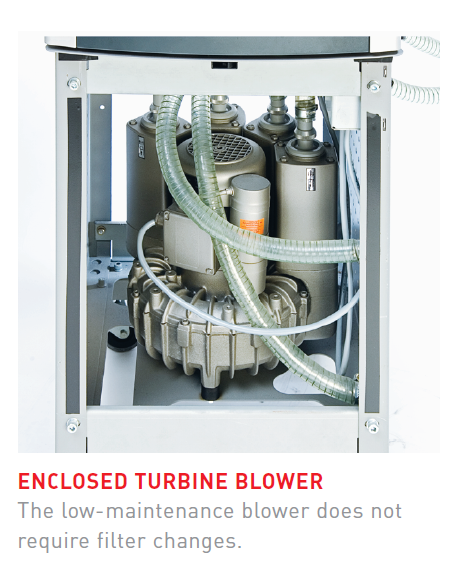

  • Turbine blower fully enclosed for quiet operation
  • 2 fold plates
  • Heavy-duty, non-flexing side frames
  • Needle bearings for high speed production
  • Mounted on casters
  • Optional extended delivery system, crossfold for right-angle folding, and slitting, scoring, and perforating attachments
  • UL and C UL approved.

 ProductSpecifications:

SPREAD (sheets/hour)30,000
PAPER SIZE (in)3 3/8 x 4 3/4 to 12 5/8 x 17 3/4
PAPER WEIGHT (lbs)13 to 110
SHEET CAPACITY  450
ELECTRICAL REQUIREMENTS 115 V, 60 Hz
DIMENSIONS (D x W x H in) 22 1/4 x 51 1/4 x 43 1/2
SHIPPING WEIGHT (lbs)312

Brochure

Specifications for MBM 352S High-Volume High Speed Air Feed Folder
:
: 18
: 10
: 1/32" x 3/16"
: 10
: N/A
: Yes
: Yes
: Continuous
: No
: Yes
: Yes
: No
: Yes
: 123.95
: 18.5"L x 19.5"W x 36.5"H
: Yes
