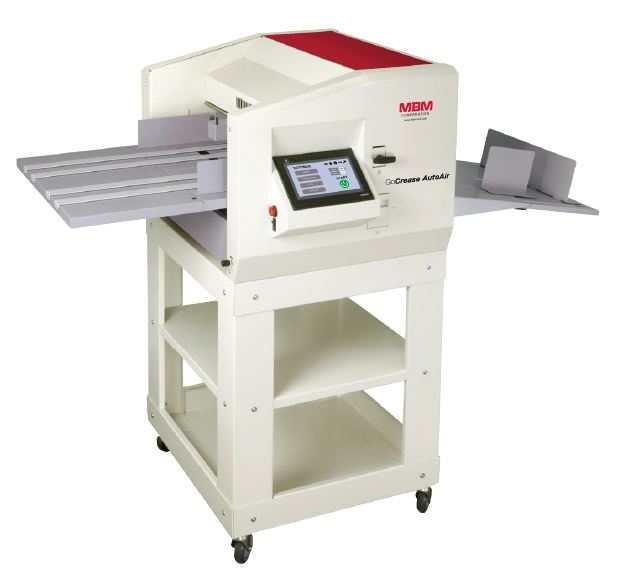

GoCrease AutoAir Automatic Suction Creasing, Perf., and Punching Machine

GoCrease AutoAir Automatic Suction Creasing, Perf., and Punching Machine
GoCrease AutoAir Automatic Suction Creasing, Perf., and Punching Machine Auto-Air 3

Auto-Air 2

Auto-Air 1

GoCrease AutoAir Automatic Suction Creasing, Perf., and Punching Machine

Price: $13,999.00

Our Price: $12,999.00

Brand: GoCrease

SKU: BO0654

ProductOverview:

MBM presents the automatic suction feed creasing, perforating, and punching machine. Designed with an air feed system, the GoCrease AutoAir enables production at 3000 sheets per hour.

ProductFeatures:

  • Air feed system enabling creasing of all types of paper within 80-400 gsm
  • Accuracy, feeding reliability, versatility of use, optional rotary perforating & cutting tools, high speed, and input capacity - are all main features of this model

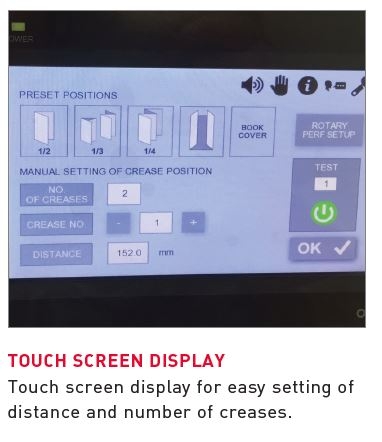

  • User-friendly with a 7” color touch screen display
  • Skew adjustment, program storage, batching, and two widths of creasing channels
  • 2.75” stack height
  • Automatically measures sheet size
  • Mobile table is included for easy and diverse use
  • 2 creasing tools included
  • Perforating tool included
  • Perforating wheel included
  • Predefined fold types include: 1/2, 1/3, 1/4, gate, and book cover

 ProductSpecifications:

SPEED (sheets per hour)3000 (1 crease)
4300 (0 crease)
PAPER WEIGHT (lbs) 80-400 gsm (creasing)
80-250 gsm (perforating)
CUSTOM PROGRAMS 60
MAX WORKING WIDTH (in)  18 (creasing and perforating)
17.7 (punching)
MAX NUMBER OF CREASES PER SHEET 40
MAX NUMBER OF PERFING WHEELS 13
MIN/MAX DISTANCE OF CREASES (in) .03 / 39.3
ELECTRICAL REQUIREMENTS 120 V, 60 Hz
DIMENSIONS (D x W x H in) 47.2 x 31.5 x .28.3
(48.2" with table)
SHIPPING WEIGHT (lbs) 415.6 (includes mobile table)

Brochure

Specifications for GoCrease AutoAir Automatic Suction Creasing, Perf., and Punching Machine
:
: 18
: 10
: 1/32" x 3/16"
: 10
: N/A
: Yes
: Yes
: Continuous
: No
: Yes
: Yes
: No
: Yes
: 123.95
: 18.5"L x 19.5"W x 36.5"H
: Yes
