Formax FD6404 Standard Series Inserting & Folding

Price: Call for Low Price!

Shipping:
FREE

Brand: Formax

SKU: FD6404-Standard

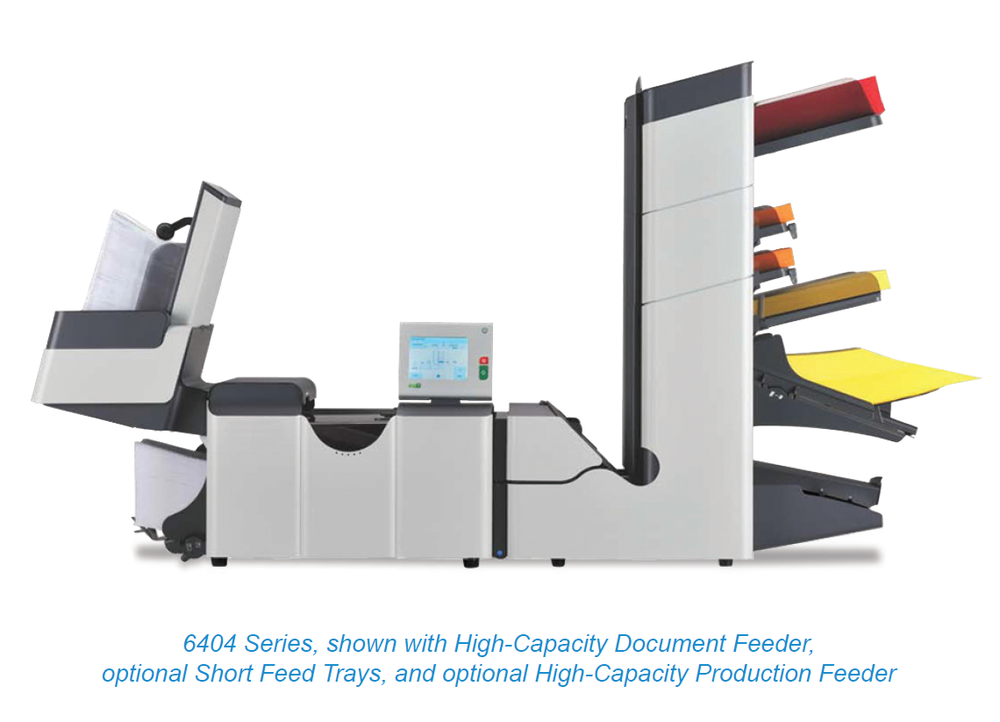

The versatile FD6404 Standard series will adapt to almost any folding and inserting application. Offering the flexibility to meet your specific needs, the series is available with 2 to 6 stations. Documents up to 14" long can be inserted in almost any combination. The FD6404 series has a high capacity output stacker that can hold up to 500 envelopes in their original order.

The powerful FD6404 can process up to 67 envelopes per minute, producing up to 60,000 finished pieces per month. The FD6404 folds up to 10 sheets in half fold and up to 8 sheets in tri-fold. Each standard feeder holds up to 325 sheets, with a cascade mode to maximize output. When one feeder empties, the next automatically starts feeding, producing a total capacity of up to 1950 sheets.

Features for all versions of the Standard Series:

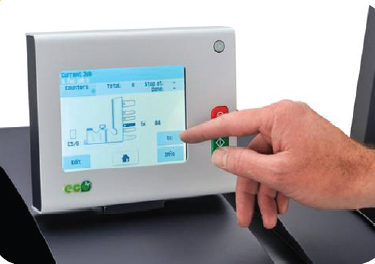

  • 5.7" full color touchscreen control panel
  • 25 programmable jobs
  • Large stacker holds up to 500 filled envelops
  • Water level detection alert on control panel
  • AutoSet one touch set up
  • Top loading envelope hopper holds up to 325 envelopes
  • Double document detector
  • Fold types: C, Half, Z, Double Parallel and no fold
  • Energy saving automatic standby mode after one hour

Versions available for the FD6404-Standard Series:

FD6404-Standard 2: Inserter - 2 station with 2 standard feeders

FD6404-Standard 3F: Inserter - 3 station with 1 high capacity standard feeder and 2 standard feeders

FD6404-Standard 4: Inserter - 4 station with 4 standard feeder

FD6404-Standard 5F: Inserter - 5 station with 4 standard feeders and 1 high capacity document feeder

FD6404-Standard 6: Inserter - 6 station with 6 standard feeders

Brochure

*Must have FD6404-30 OMR

**Must have FD6404-50 BCR Flex

Specifications for Formax FD6404 Standard Series Inserting & Folding
Stacker Capacity:
Speed:
Paper Size:
Paper Weight:
Pre-Programmed Folds:
Fold Types:
Paper Feed Tray Capacity:
Power:
